Out of the box "CJScope Z-530 ultra-thin laptop" can be on the desktop graphics card Ultrabook thin pen
Last year, my own pen called CJScope Z-230, that is, before I wrote the box, looks like Macbook Air that Taiwan
This is really very good, because he is completely chasing Makbook Air inside and outside the design to do out, but more than the Macbook Air more than a set of 7mm hard disk space
So my Z-230, which has 256GB SSD + 1TB HDD, work and entertainment are quite competent, with a whole year put it down
And this year's Z-230 revision, once again launched the "CJScope Z-530 ultra-thin pen" , the appearance becomes a bit different, specifications also greatly improved, equipped with a new Z-530 configuration 7th generation Intel Core i Kabylake processor, Intel 14 nanometer process technology design of the chip, the power of the better performance, the other the most important evolution of two points
1. Use SHARP IGZO screen, with a high power saving features, but also Hon Hai Guo Dong fancy secret weapon
2. Add more IO interfaces such as USB Type-C, Thunderbolt 3 Port, LAN, and Bluetooth
Light these two points, let Z-530 become my new Huan, he really too praise!
Most importantly, the Z-530 can be equipped with NVIDIA GeForce GTX series of professional gaming graphics card, as well as NVIDIA Quadro series workstation graphics card, allowing you in the professional gaming, business, entertainment, home ... super portability and performance Unparalleled!
Z-530 is definitely the most recommended pen this year, why? Please look down
Out of the box "CJScope Z-530 ultra-thin laptop" can be on the desktop graphics card Ultrabook thin pen
Hi Jie lion this time a new product, immediately sent to my home to evaluate, I was really surprised when I received

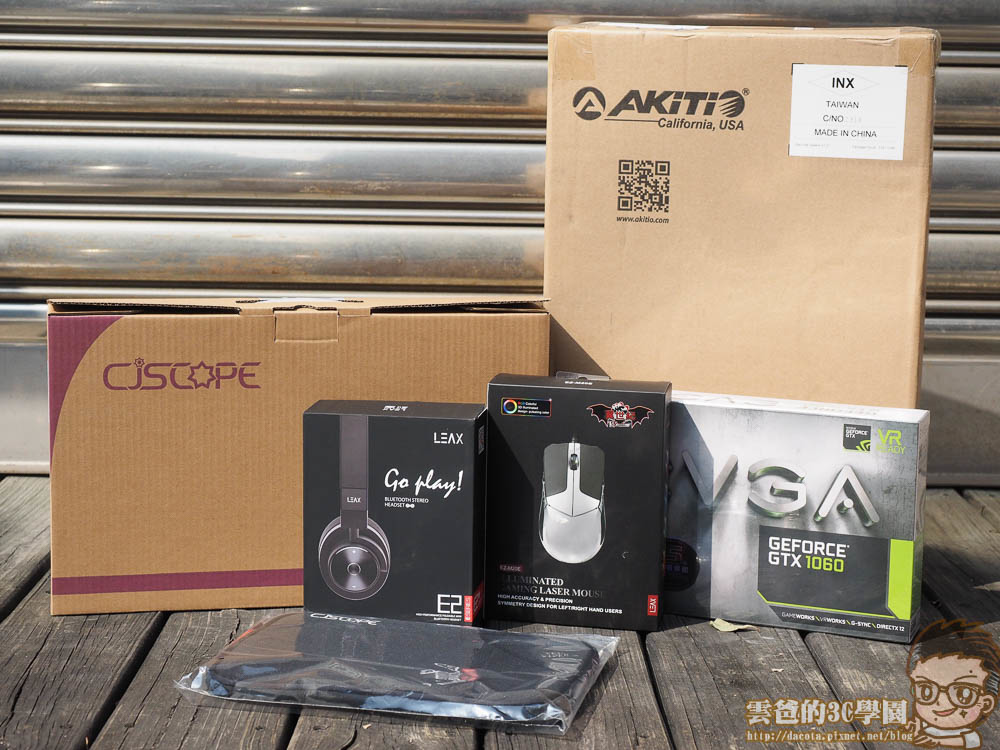

How is such a big box! Is this really a Z-530 thin pen ?
The original CJScope Z-530 his product ordering page, if you do not play the game, do not need a separate graphics card, the beginning of what are not purchased standard specifications , Z-530 stand-alone price is 30600
● buy offer: https://goo.gl/4oLvR7
● Original product description : https://goo.gl/8i7B3F
Gift is very luxurious, is the laser power mouse
1. LEAX RGB full color 16 million color glare laser gaming, drawing professional mouse, metal texture, resolution 1800DPI / rate of 1000Hz (currently selling gaming / graphics dual mouse) [free to you], apply Left and right hand
operation 2. CJSCOPE designer classic paragraph [SJ-LION] super-shock-absorbing laptop accessories shock package (bag size size of 10.2 inches)
3. Zun Jue laptop cleaning service * unlimited time can be three times the opportunity
operation 2. CJSCOPE designer classic paragraph [SJ-LION] super-shock-absorbing laptop accessories shock package (bag size size of 10.2 inches)
3. Zun Jue laptop cleaning service * unlimited time can be three times the opportunity
The back can adjust the DPI, switch RGB lights, lock the side function keys
Let us introduce the same
Out of the box "CJScope Z-530 ultra-thin pen"

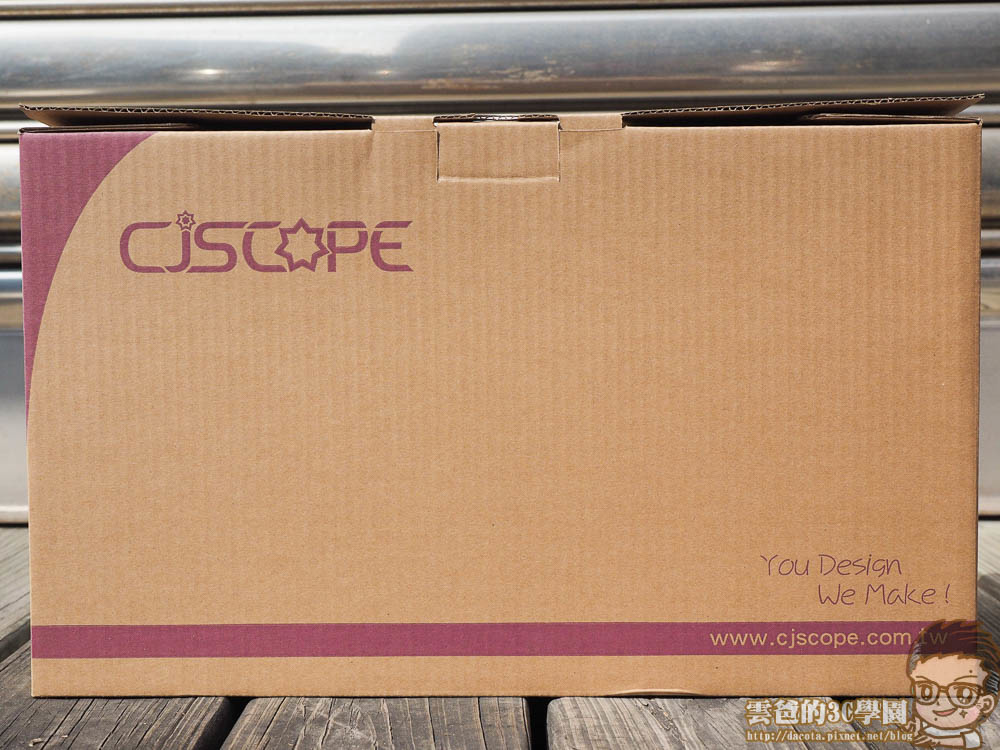

This time I received the Z-530 carton is still the same, hi Jie lion for the design of the box is not very particular about, I think their pen outside the box about two Size
But they pay attention to transport safety cover, which has a very thick foam
On both sides of a very thick foam clamped, the middle is the new CJScope Z-530, the other accessories include instructions, CD-ROM drive, and a group of transformers
Which is attached to this mean ...?
Forget not to study, skip
The other part, including Windows 10 enabled serial number, next to this group do not know why the screws
The transformer is very small, with the lighter almost the size of it

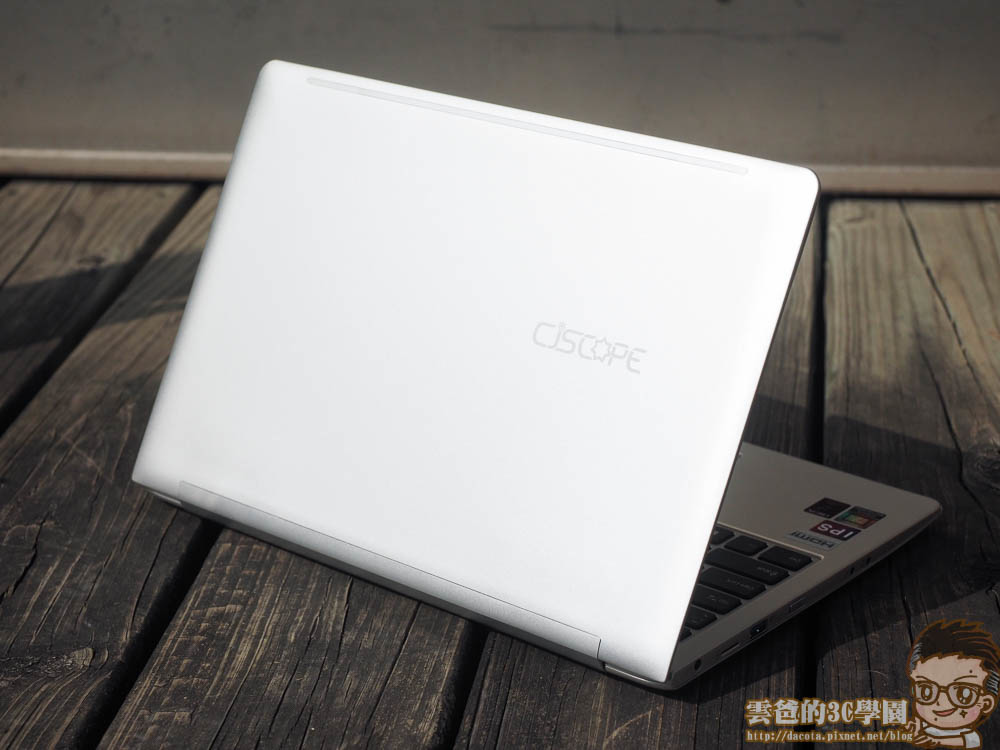

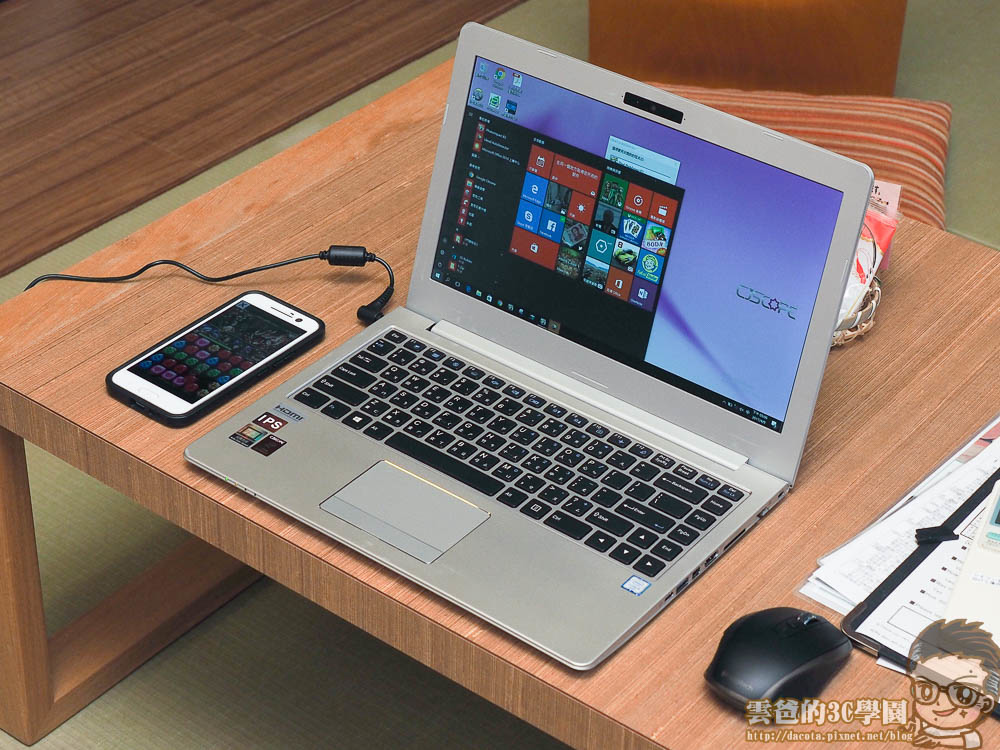

Again to see the Z-530, the whole machine at first glance with the Macbook Air, Z230 is still very close
The same is all aluminum alloy forming, the same thin, but the Z530 design elements and screens are completely different with the previous generation
Z-530 specification list
- 處理器: 七代 Kabylake i5-7200U (SR2EY) 雙核心四執行緒 2.3 GHz ( Turbo to 2.8 GHz ) 3 MB Cache | 15W Thermal Design Power
- 記憶體: 8GB DDR4-2133 (8GBX1) Micron Crucial 美光 / Hynnex 海力士
- 顯示卡: Intel HD 620 24組執行單元 核心頻率350-1150MHz | 3DMark 11 GPU約1493分
- M.2 硬碟: WD WDS250G1B0B 250GB M.2 2280 SSD 固態硬碟 | 連續讀寫540MB/s，500MB/s | 4K隨機讀寫40K/30K IOPS
- 無線網卡: Intel® Dual Band Wireless-AC 3168 M.2，雙頻網卡(2.4 GHz/5 GHz)，802.11 ac/a/b/g/n + Bluetooth 藍芽4.2

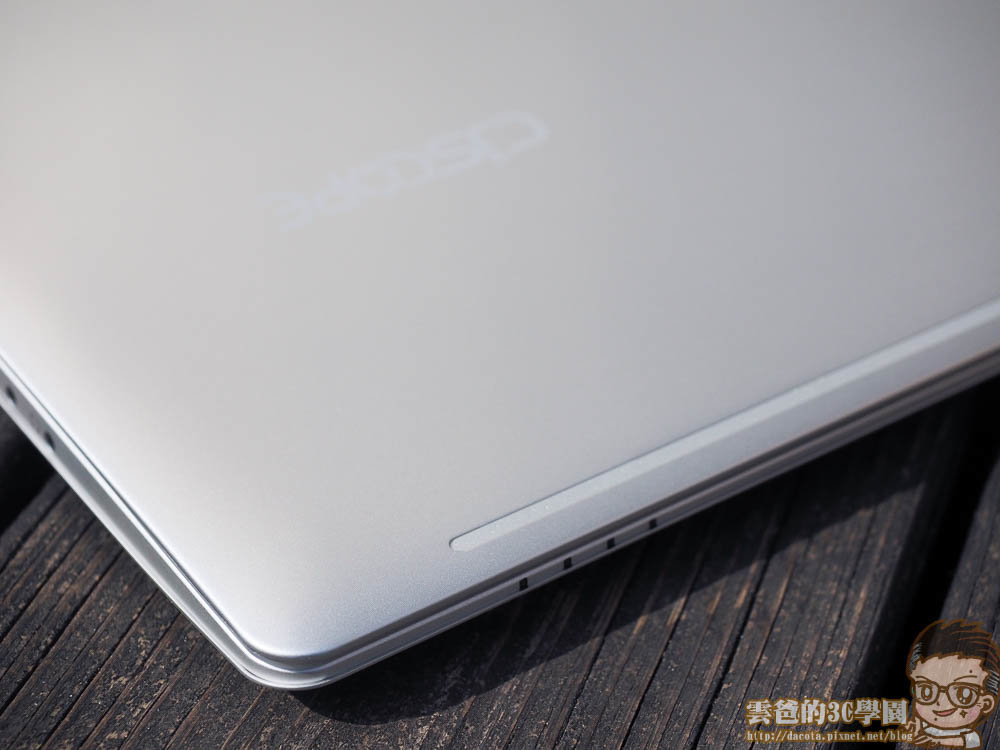

首先，A件多出一條裝飾用的凹槽，此凹槽設計是為了讓消費者抓持筆電時，增加止滑力
完整的IO介面
其二，是更豐富的輸入輸出介面，相較於Z-230新增的我用黃底標示
右側的介面: USB Type-C (ThumbBote)、USB 3.0、MiniDP、HDMI、SD讀卡機、LAN、防盜鎖孔
左側: AC電源、SIM卡槽、USB3.0、電源開關，獨立麥克風輸入/耳機輸出
SIM卡插槽目前僅為空槽，無作用。原因是增加此項配備後，CJScope 需付出龐大授權費用，故台灣版本無此配置，但若有需求也可客製訂購 (該卡售價約一萬多)
但我覺得也不用訂購，畢竟手機分享熱點也就夠了

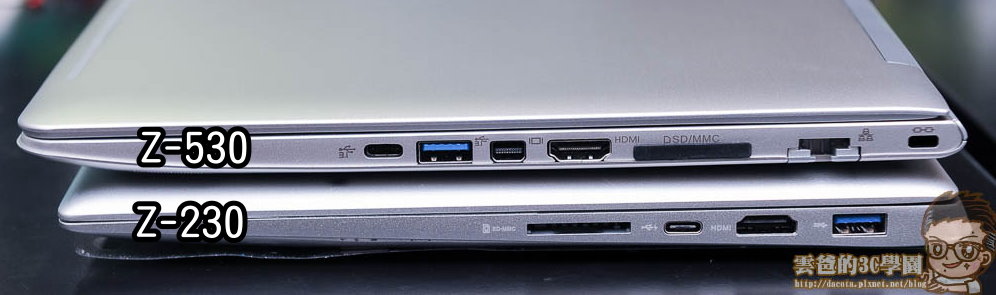

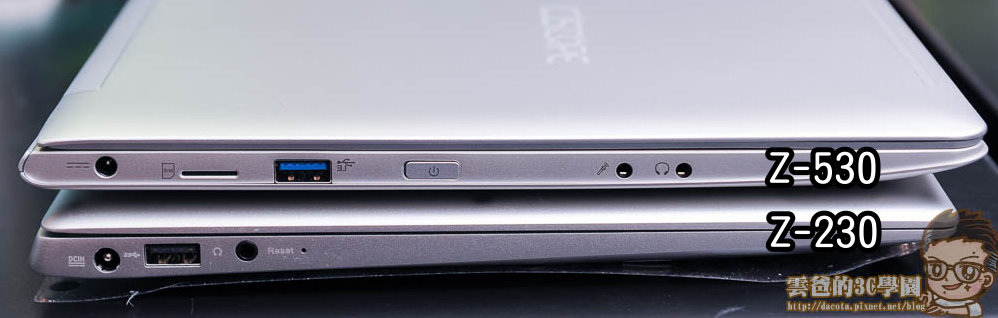

Z-530 VS Z-230
So that the two put together, even more clearly than that
I think the most convenient, or directly built-in LAN hole, even now with the wireless network, but occasionally will be used, like last week to stay in Japan live hot spring hotel, met the old hotel no wireless network
This time it is necessary to have the network hole, there is built-in or good, do not have extra band with additional wire
The previous generation Z-230 power button placed in the upper right corner of the keyboard, because many consumers are not actually Macbook users, put on that often touch, so the switch placed on the left
The maximum opening and closing angle, on the Z-530 keyboard shaft design, with the Z230 also have different
The two Hinge design different reasons, mainly because the design needs, both the tone of the Toking Ring will be different
Z-530 to be able to withstand the relatively high number of pounds, because the machine itself, the higher the pressure G value
Can be found in the whole machine A, D pieces of the shell, are protruding a small cut out
This change allows you to turn on the screen, the full increase in the position, Macbook Air can only open the screen from the center, Z-530 can be opened from any location screen
Large touchpad, high sensitivity, knocking sense of crisp, surrounded by diamond cutting
But I used the majority of Bluetooth mice
Using IGZO IPS screen technology, watch more comfortable, more power
IGZO is indium gallium zinc oxide (indium gallium zinc oxide) abbreviation, simply is an LCD film transistor display technology. IGZO screen display technology is by the Tokyo University of Technology Professor Shimoda Hideyoshi and Japan Science and Technology Promotion Agency (JST) jointly developed in the TFT-LCD active layer with a layer of metal oxide. Compared with amorphous silicon (a-Si) screens, IGZO display technology can reduce the size of the transistor and improve the aperture of the LCD panel pixel, the electron mobility 10 times faster, in the same size to improve the screen resolution and display Ability, and has high stability and can reduce the power. IGZO screen technology is the most direct and obvious experience than 120Hz high-speed update capability, can reduce the dynamic blur, to provide a more smooth and comfortable visual experience.

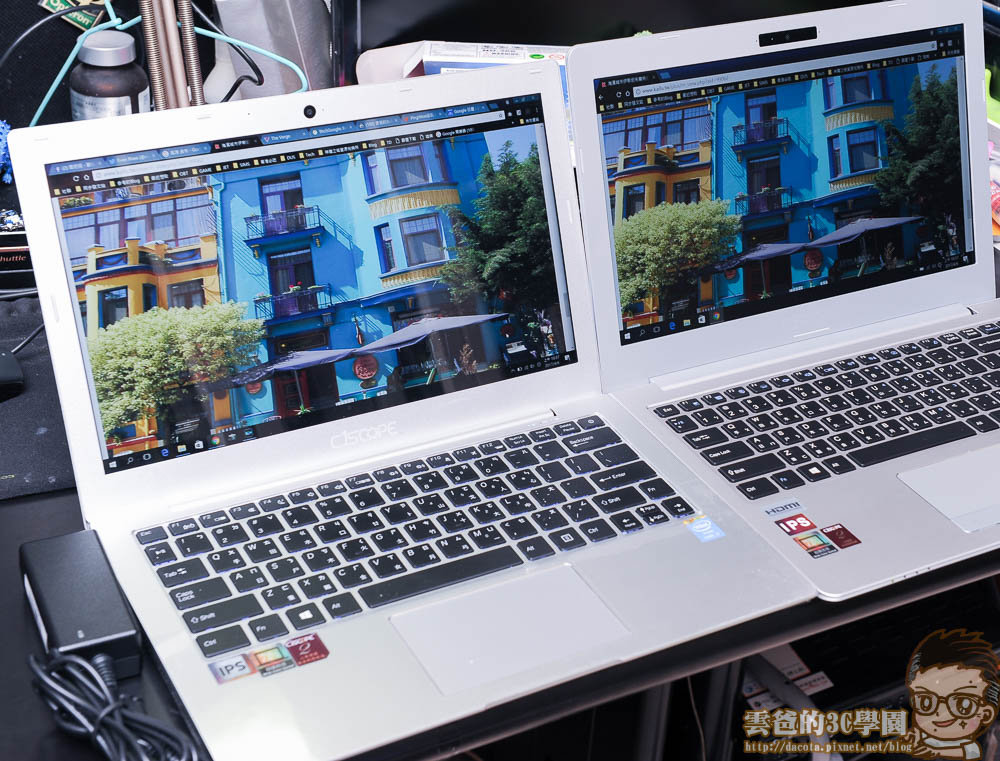

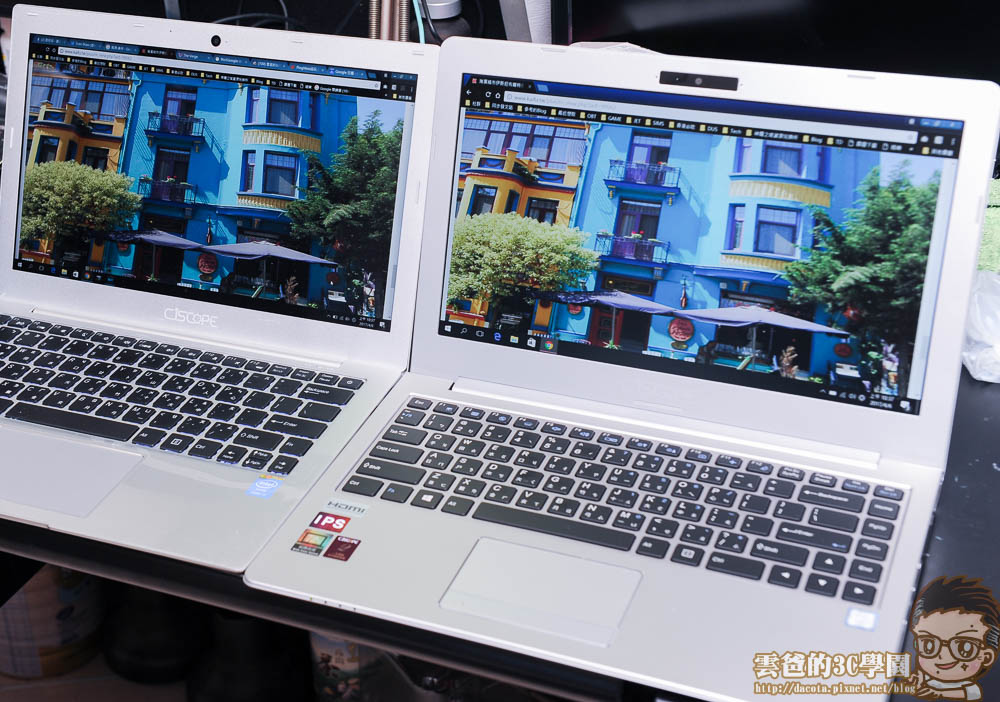

The left is Z-230, IPS panel, the right is Z-530, using IGZO IPS panel
Color performance is almost the same, but the Z-530 maximum brightness can be higher, that is, in the sun's performance will be better, while the color gamut is also wider
Respectively, placed on both sides of the viewing angle of the photo, to compare to see
The left is Z-230, IPS panel, the right is Z-530, using IGZO IPS panel
With the IGZO IPS panel technology, thin and light notebook, currently only Macbook & Z-530
Front more than the status of identification lights, the screen can also see the power, HDD, wired and wireless network status lights

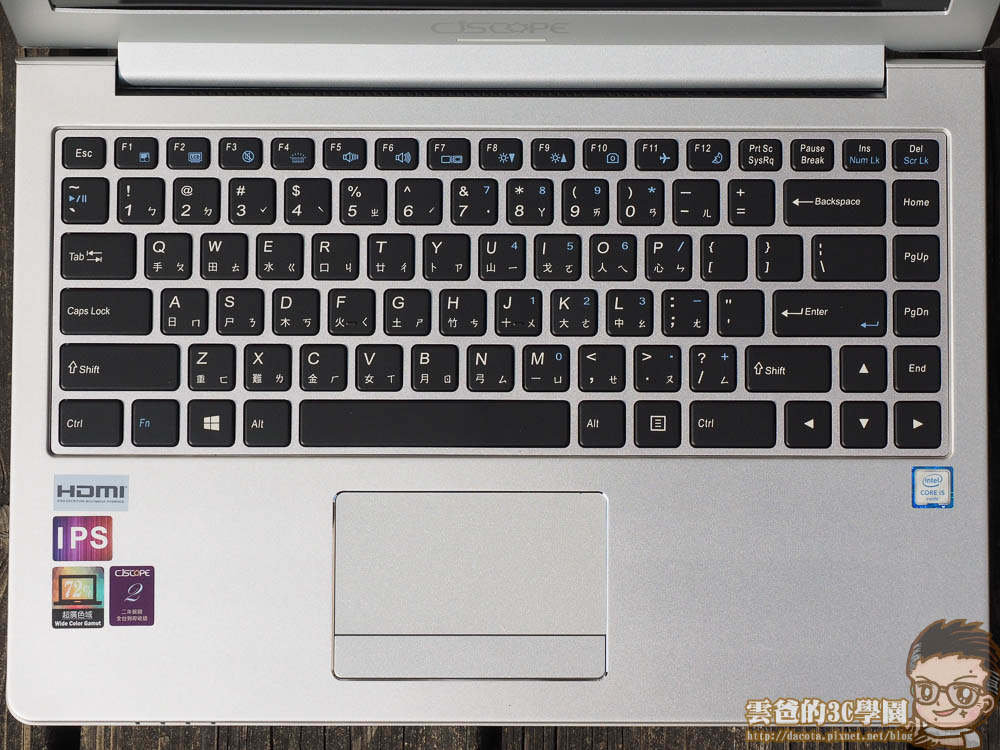

Excellent keyboard feel
The keyboard is my most praised part of the hand, almost the same with the Macbook Air, key travel about 3mm or so, thanks to moderate strength, just a good feel

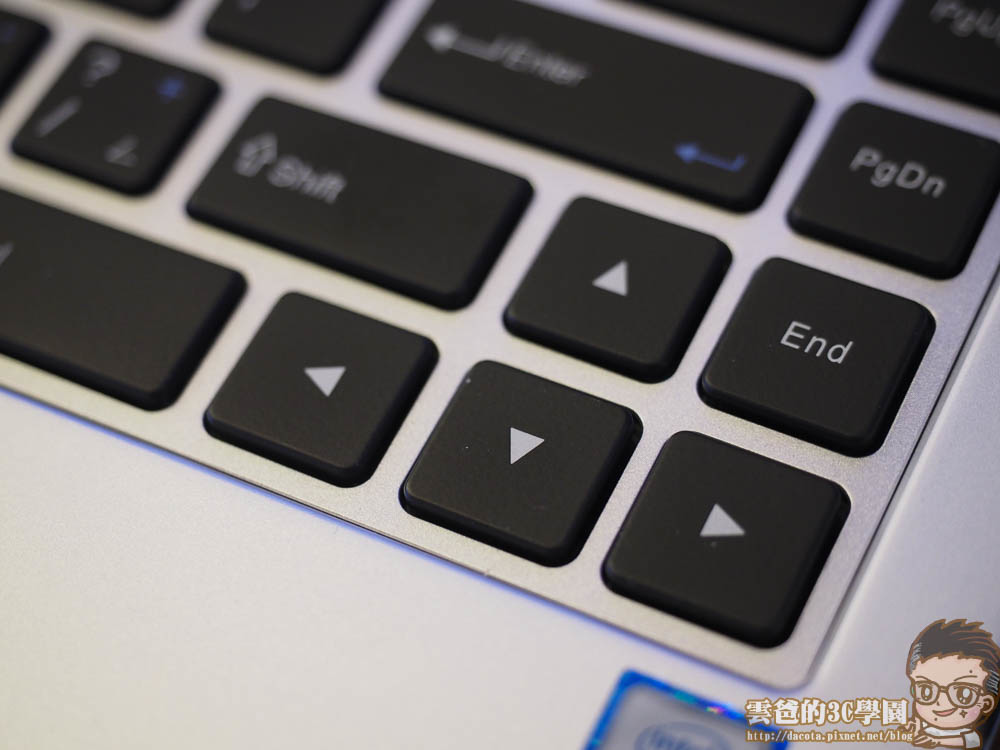

The keycap is also very delicate, the edge plus the four corners are arc processing, fingers in the above wandering hit double degree, especially as I entered a large number of text every day, especially felt
At the same time he also uses the standard keyboard configuration, key width and spacing ratio is almost the same with the Macbook Air

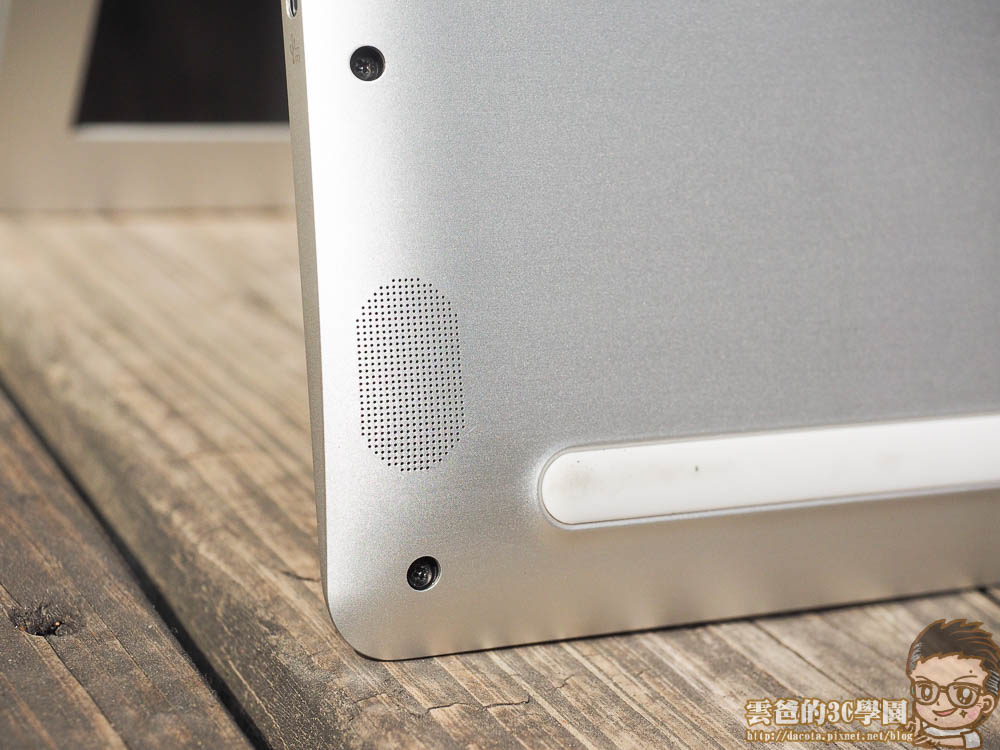

D pieces at the bottom of the two sets of speakers were sound position, compared with the sound of the Macbook is almost the same
Since the mention of Macbook Air, I also found a version of the MBA 2015 to compare
On the left is the Macbook Air on the right is the CJScope Z-530, the screen accounted for larger than the Macbook Air, both IGZO IPS panel
MBA 2015 input and output interface, have lost a lot of Z-530. Z-530 more HDMI, USB3.0, Type-C, LAN
Keyboard feel, the shape of the keycap compared to the Z-530 are almost the same, but the Z-530's keycap feel even better (arc edge better touch)
Ultrabook in the highest expansion
CJScope laptop with a high scalability, even Ultrabook is no exception, this Taiwan to dismantle more trouble, because the first to remove all the screws on the back of a total of 12

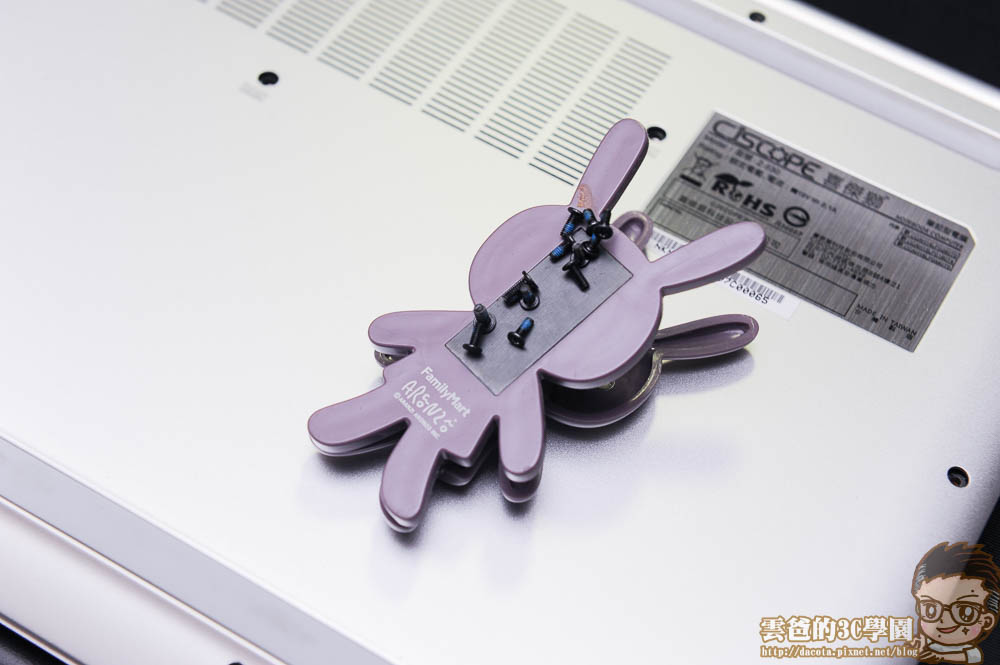

And then pick up the keyboard, and then remove the hidden inside the keyboard two screws in order to successfully remove the backplane
And the demolition, we must also pay attention to the keyboard of the two cable, a control text input, a control keyboard backlight, split the screw on my little thing, insert the cable is too much trouble

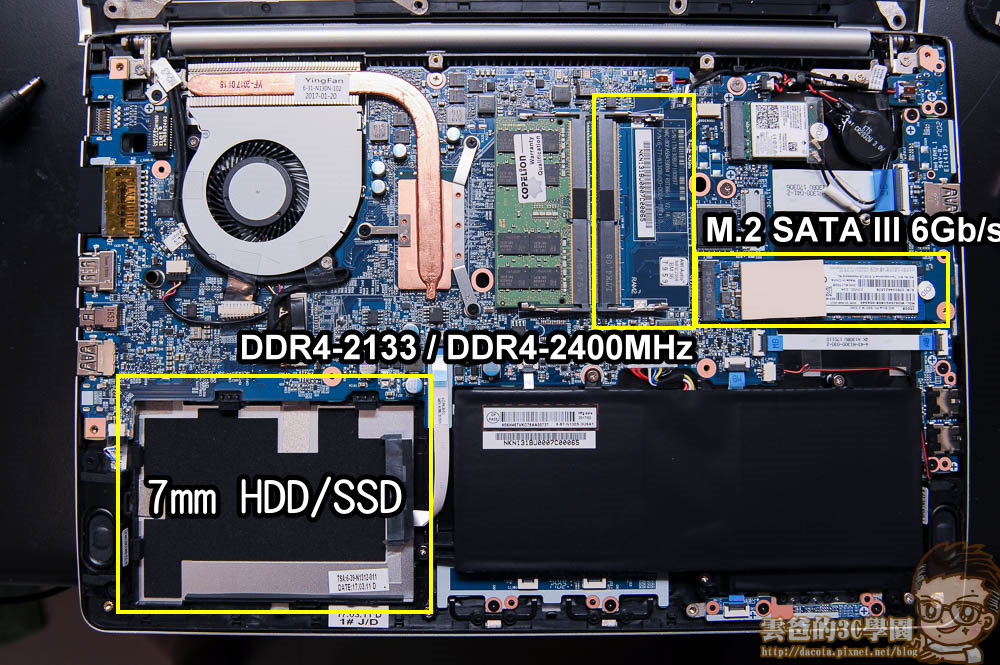

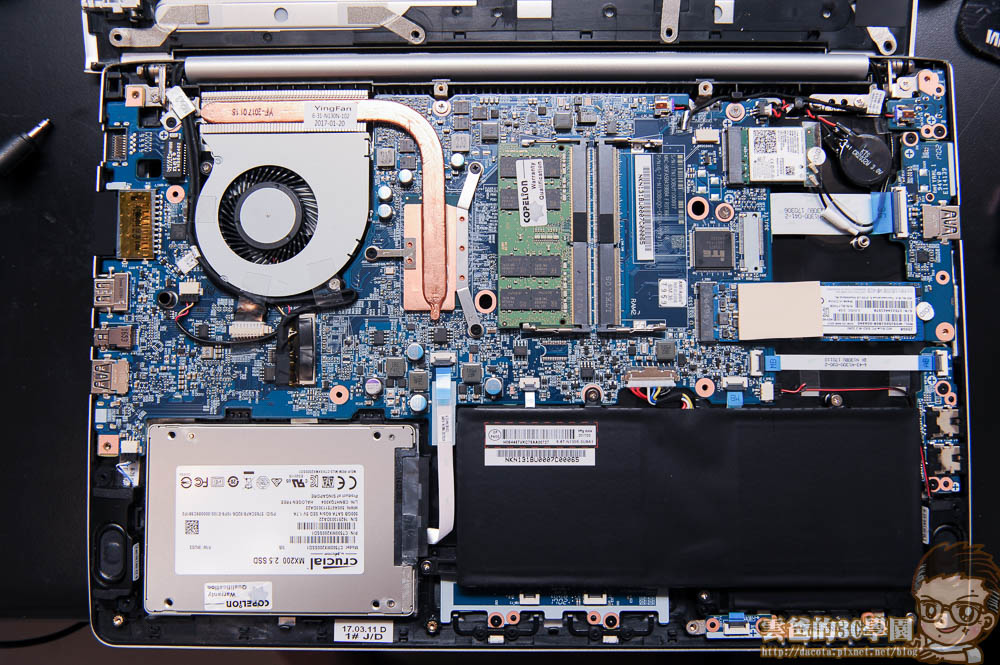

But you see, this can expand the space, can be said to be the same size, with the volume of the laptop, the highest flexibility
RAM / HDD can increase their own upgrades, the future and other RAM and then down the price, once he rose to full
So I myself installed a group of Micron 500G SSD ~
You can also look at the way his cooling module design, and really have two groups of speakers in the inside
System performance testing
Use PCMARK 8 running Work accelerated, get 4576 points

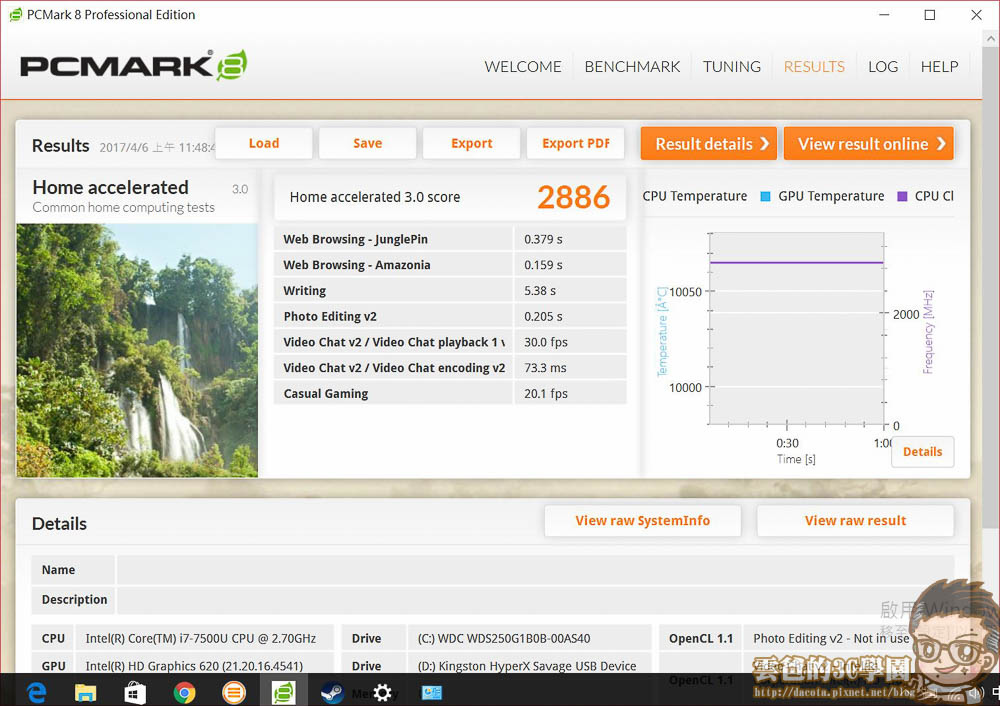

Home accelerated 2886
Creative evaporation 4322
3DMark 11 gets X448
Z-530's energy-saving design is very strong, up to 8 hours of battery life
The control software will control the power of the central processor, as well as the power of other devices, in the power saving mode, the separate control
For example, in power saving mode: when the flight mode is turned on, the brightness of the screen is in the darkest case (because it is IGZO LCD technology, in this case, as a certain screen to maintain a copy)
Hardware and EC will automatically provide the performance to the hardware currently being processed by the device, this part, with the previous generation of Z-230 design above a great improvement, not because of the power saving mode, and sacrifice processing The effectiveness
Endurance test
In general, if we fully open the performance, usually used in the timing of the use of electricity, this part is not tested
Power saving mode at the end can be divided into several cases
The brightness of the Control Center screen is in the darkest case
Turn on flight mode: handle the typing part of the instrument, about 5 hours 43 minutes
If the web is open, the Bluetooth is off for about 4 hours and 54 minutes
If you want to reach eight hours, you must be in the advanced power side of the battery mode, the maximum processing of the central processing unit set at: 35%
So that you can maintain a good performance, to achieve a lot of power
Again is the most perverted part - to open the plug, this NVIDIA GTX 1060 graphics card with the Z530 fit
"CJScope Z-530 ultra-thin pen power" also play VIVE, GTA5

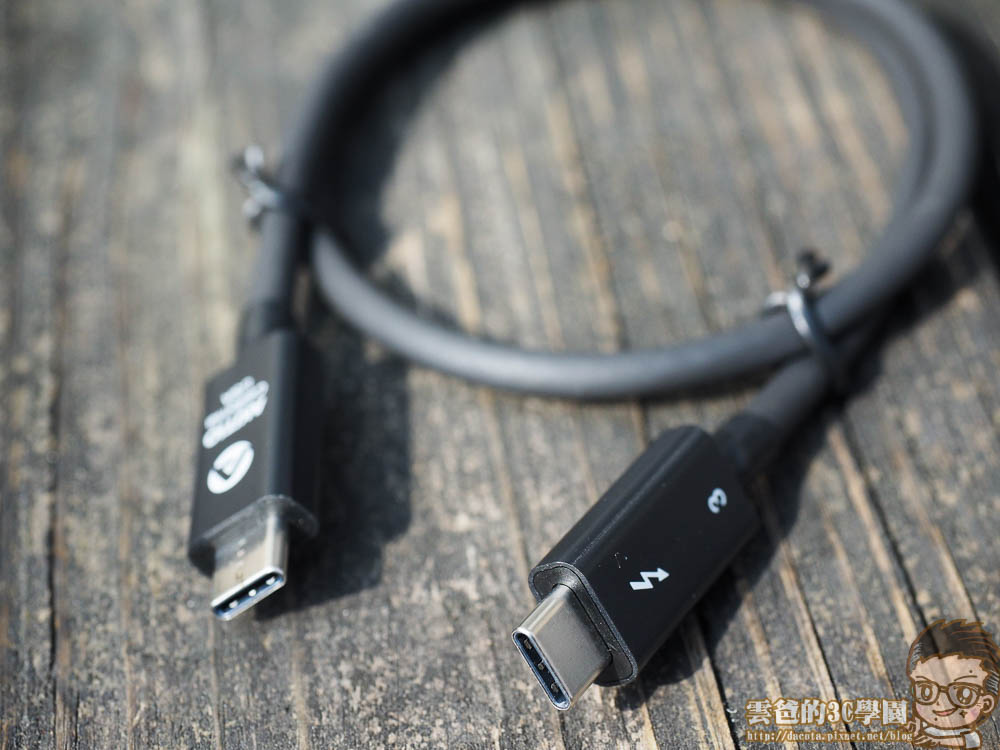

CJScope Z-530 because more Thunderbolt 3 Port, with high-speed 40Gbps transmission bandwidth, so you can do more things
You can now use the same Ultrabook, plug in USB Type-C (Thunderbolt 3) , directly to play VIVE, or more efficient games

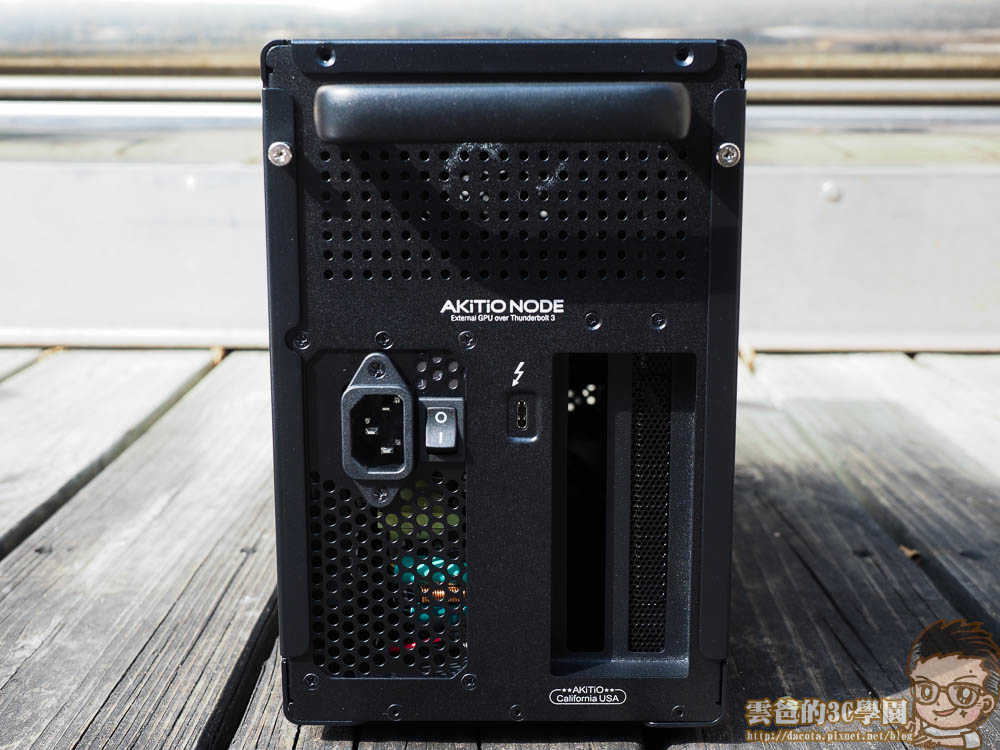

This option when buying - Thunderbolt expansion device AKitio node display card adapter box, and desktop independent graphics card
Can buy can not buy, buy the words equivalent to have the game graphics performance

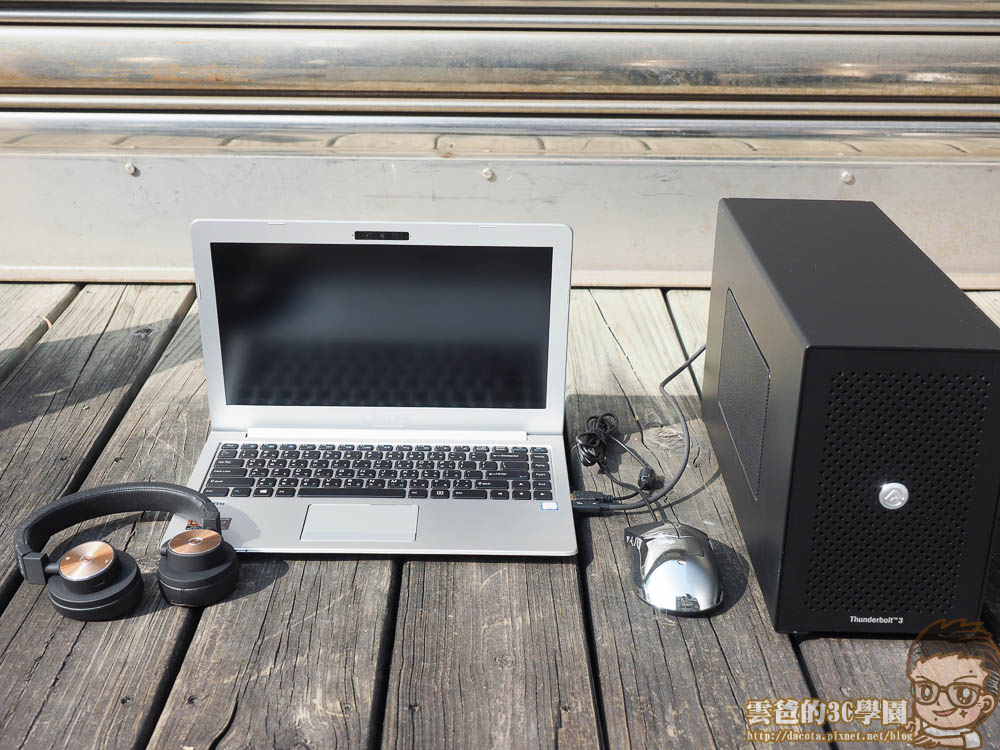

So the beginning of a large box that is behind, this group of external graphics box, but also to buy a Nvidia desktop graphics card
Graphics card models at least to GTX 1050Ti or 1060 to play Vive, then here I chose the GTX 1060
All spread out, this group of external graphics card size is not small, he is used to put at home, home can be inserted directly on the line to play Game
The shell is made of metal and can be turned on with a toolless screw

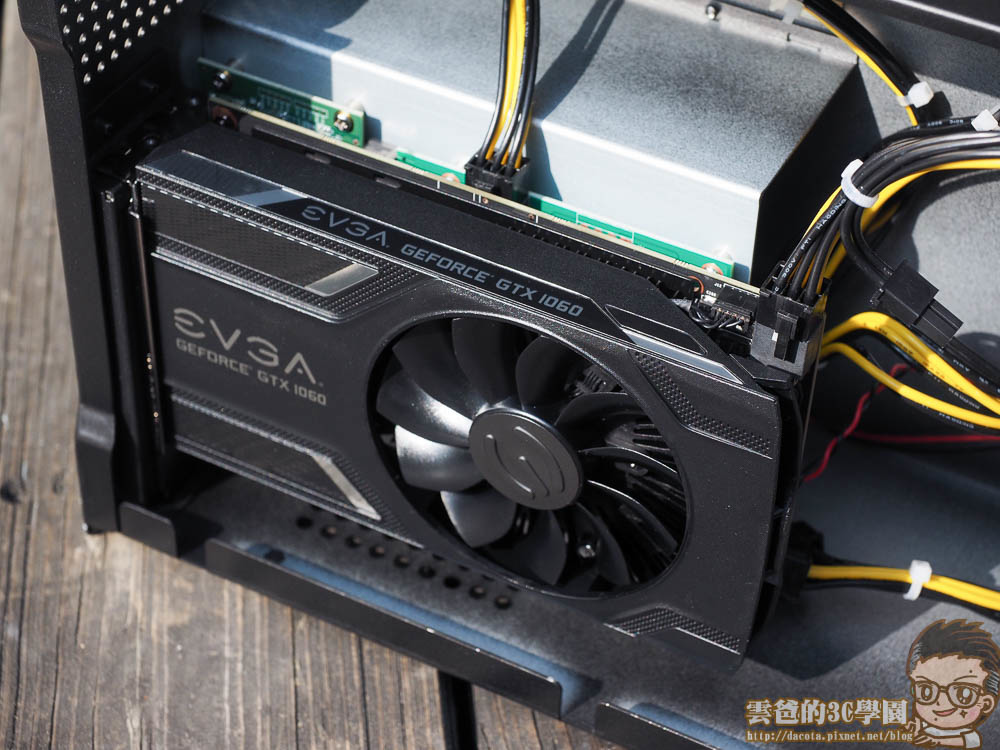

The internal space is very large, there are two sets of Slot, the output interface for Thunderbolt 3
Which is equipped with a USB Type-C common interface , in fact, is running up to 40Gbps Thunderbolt 3
Inside the cooling space is quite enough, because such a large space, in fact, is used to put the card

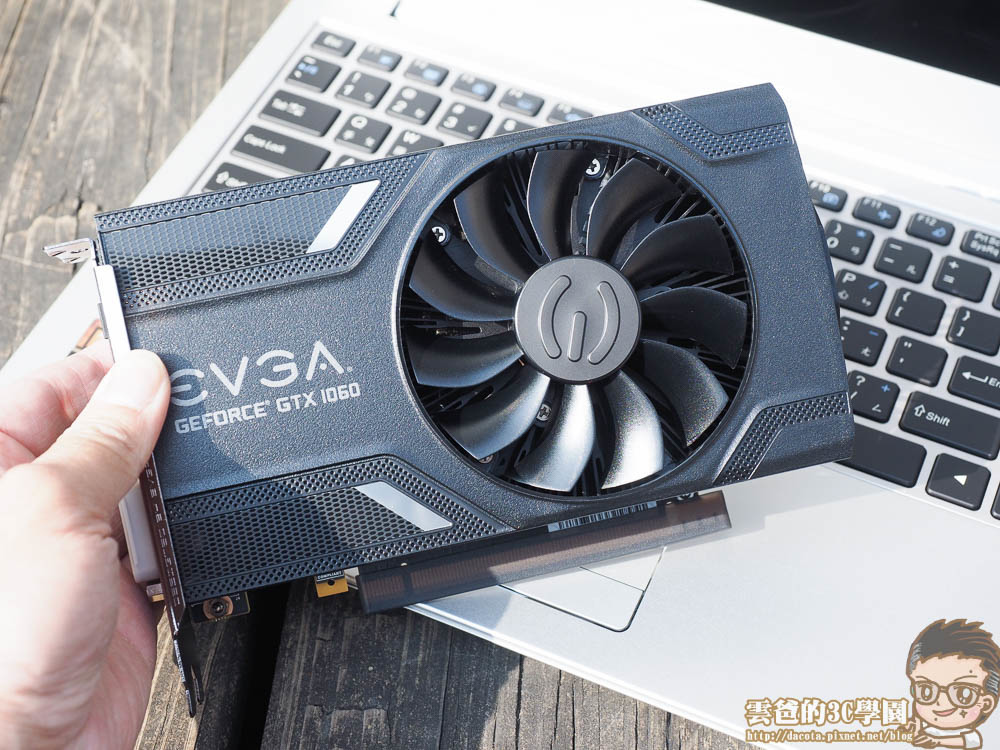

After this connection, you can use nVIDIA GTX 1060 external graphics performance, to perform a variety of game operations
You insert GTX 1060, is the gaming pen, you buy nVIDIA Quadro K620 professional graphics card, that is, graphics workstations
Turn the pen for a second time
External graphics box placed on the right side of the strange, I feel very hand
Placed on the back of the normal more
Above the headphones, the same is also one of the Z-530 purchase options "LEAX E2 SRP vivid full-cover Bluetooth headset"
This group of sound quality and effect is quite good, if your home no better Bluetooth headset, I think this is OK to buy this group, mainly to carry is also convenient
Two years warranty, can be extended to extend the insurance, up to five years
CJScope Jay Lion's pen is available for two years warranty, warranty maintenance free
Over the warranty, then every time the test fee 700, if really broken to repair will be deducted from the cost of 700, that is, low consumption of 700 yuan
I personally recommend the purchase of a year warranty, the cost of 2500, a laptop Shun Shun with three years should not be a problem, after three years should also enter another stage,
to sum up
Z530 is currently on the market, the specifications of the most perfect configuration, both the driving force and combat strength of a thin pen
Do you say that the market, the specifications than his good laptop there? Of course, but certainly thicker than the Z-530, or is not to expand, or even less input and output interface, or is more expensive
Z530 of course there are shortcomings to Ultrabook's high-level exquisite sense, Z-530's metal shell because the consumer to disassemble, so near the fuselage, the shell and shell will be between some slits
Compared with ASUS Zenbook 3, refined and luxurious sense is also inadequate
Compared with the Macbook Pro, life is also a lot less, Macbook conservative estimates can be used more than 10 hours, but the Z530 is only up to 8 hours
But the Z-530 is the best choice for all the considerations
Input and output interface complete, 2 groups USB3.1, 1 group USB Type-C, a group of 6-in-one card reader, a group of HDMI, a group of LAN
Light weight, only 1.39 kg
IGZO IPS screen viewing high comfort, not easy to fatigue
5-segment illuminated keyboard
With a set of 7mm SATA3 hard drive slot + M.2 SSD slot + two sets of RAM slots
With Thunderbolt 3 scalable external graphics, play high energy consumption of the game, such as HTC VIVE
In all respects, the Z-530 is the best choice for the current CP value, at least until now, no thin gauge notebook can go beyond him
Finally, buy time

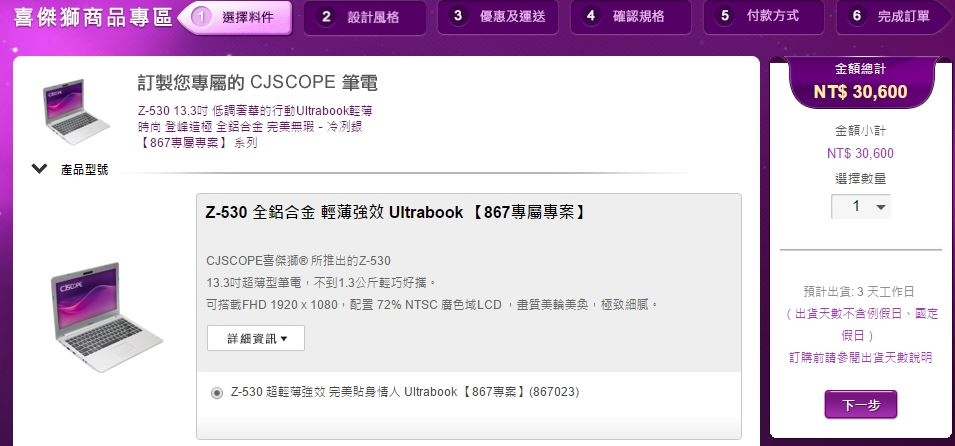

CJScope Z-530 His product ordering page, if you do not play the game at all, do not need a separate graphics card, the beginning of what are not purchased standard specifications
Z-530 stand-alone price is NT: 30600
● buy offer: https://goo.gl/4oLvR7
● Original product description : https://goo.gl/8i7B3F
I personally recommend that direct selection of memory upgrades, pulled up to 16GB, price: 32400
External graphics card + graphics card, this can be added to see if you have not played the game.
CJScope Z-530 ultra-thin laptop ..... really great, really recommended
